Product Details

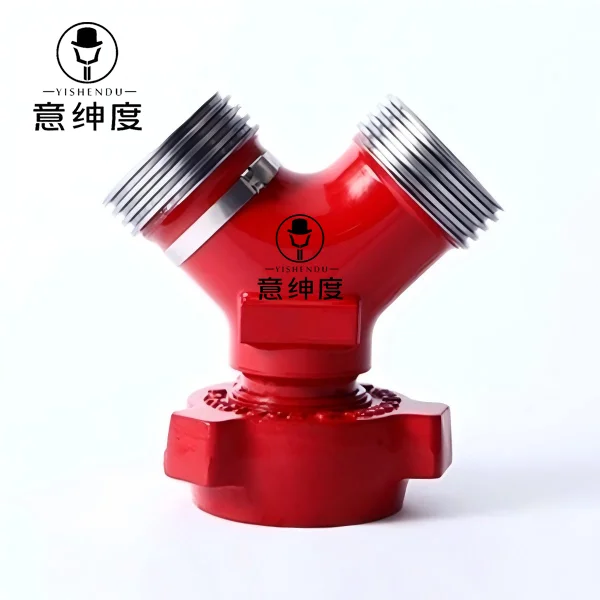

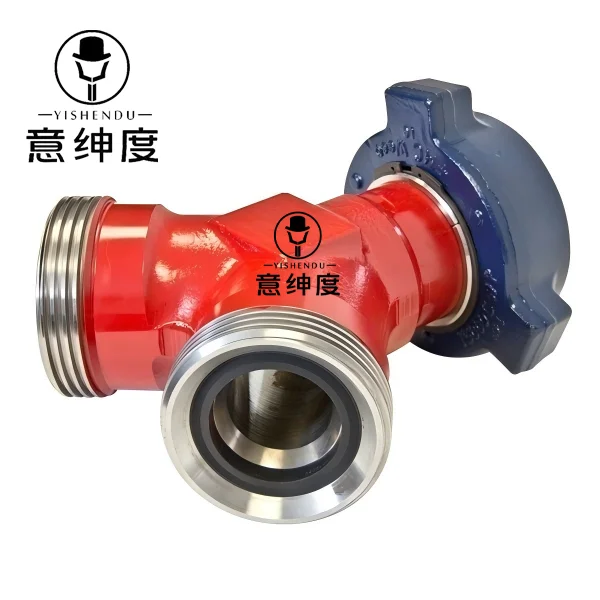

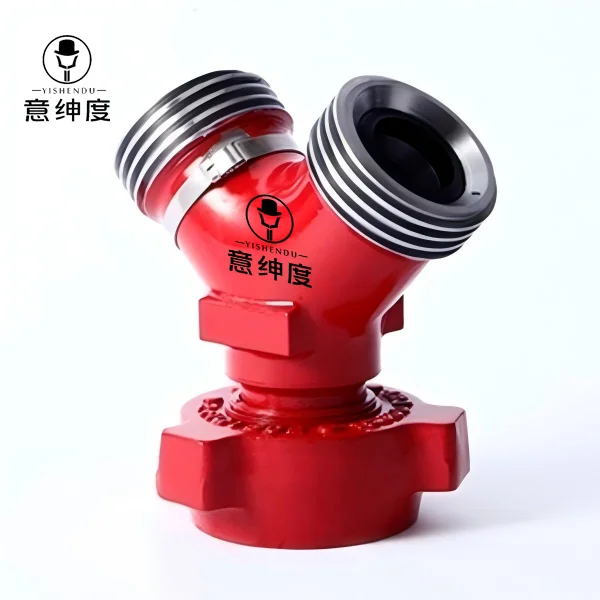

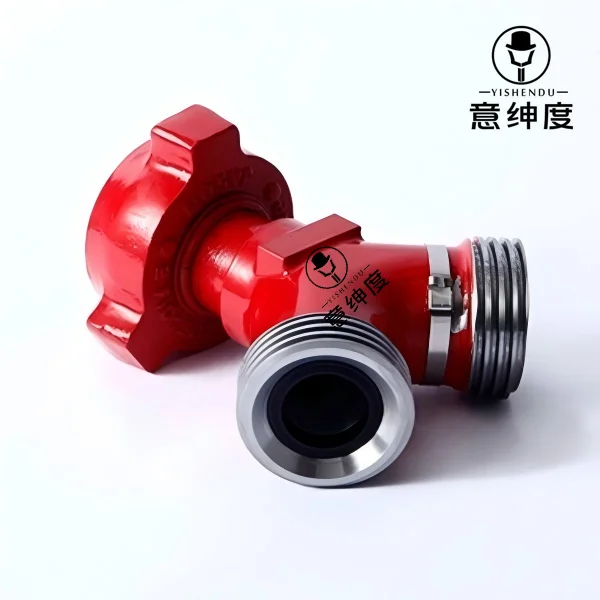

Weco Hammer Union WYES belong to the Integral Fittings family. Weco Wyes / Y are used with integral Pup Joints to form complex pipeline.
Our union wyes are upgrade of SPM & FMC Weco Wyes and are fully designed, manufactured, and tested in accordance with API 6A and API 16C standards. Available in nominal sizes 1″, 2", 3", 4″ and rated cold working pressure (CWP) at 6,000psi, 10,000psi, 15,000psi and 20,000psi. Qihang's weco union wyes are widely used in cementing, fracturing and testing lines, and other well service applications. Aside from Wyes for standard service, we also produce and supply wyes for sour service to match corresponding integral pup joints, easy for sour service manifold assembly. To distinguish from the standard service type, the wyes for sour service are painted olive green.
Technical Specifications
Product Name: Wyes, Integral Fittings, Weco Hammer Union Wyes
Sizes: 1", 2", 3", 4"
Cold Working Pressure (CWP): 6000 PSI (6K), 10000 PSI (10K), 15000 PSI (15K), 20000 PSI (20K), 42Mpa-140Mpa
Material: Integral Forged Alloy Steel or as per customers requirements
Configuration: Male x Female x Female (M x F x F), Female x Female x Female (F x F x F)
End Connections: Weco Wing Hammer Union Fig 602, Fig 1502, Fig 2002, Fig 1002 Integral Connection, Threaded
Temperature Range: -46°C~121°C/-20°F～250°F/-50°F～250°F
Service: Standard, H2S Service, Sour Service
Standards: API 16C, API6A, and NACE MR0175
Traceability: Qihang's Weco Union Wyes are supplied with full traceability documentation for each component.
Interchangeability: Qihang's Weco Hammer Union Wyes are interchangeable with FMC Weco Wyes and other major brands.
Application: Oil and Gas lines, High-pressure well servicing lines, Acidizing& fracturing lines, well testing lines, Crude Oil and Sour Gas, Mud, Manifolds and Pipelines, Cementing and well stimulation applications, Production and flushing lines etc

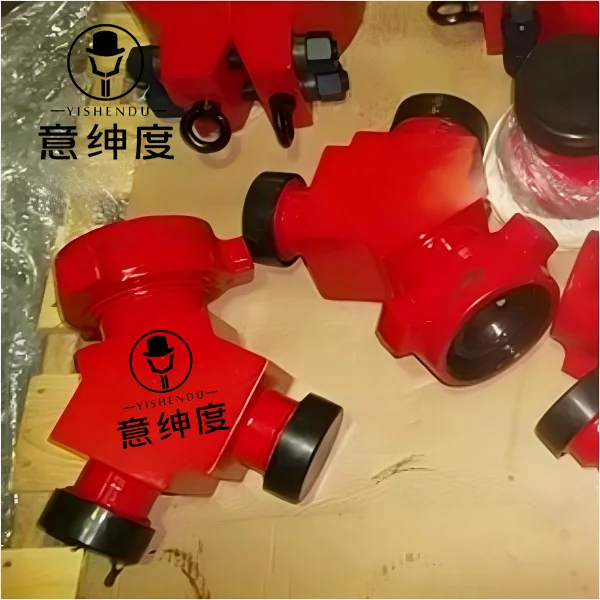

Packing: Plywood
Origin: China
