Product Details

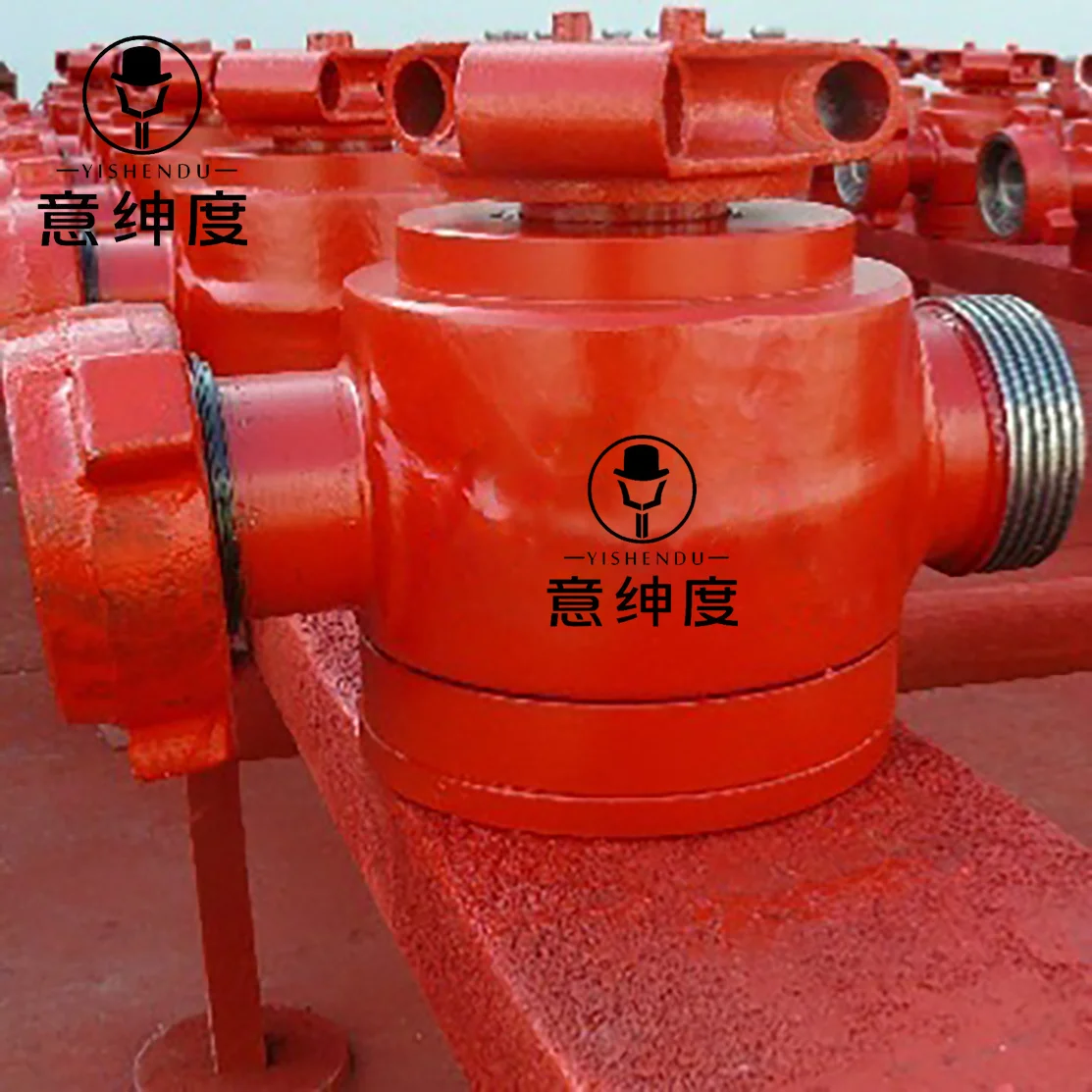

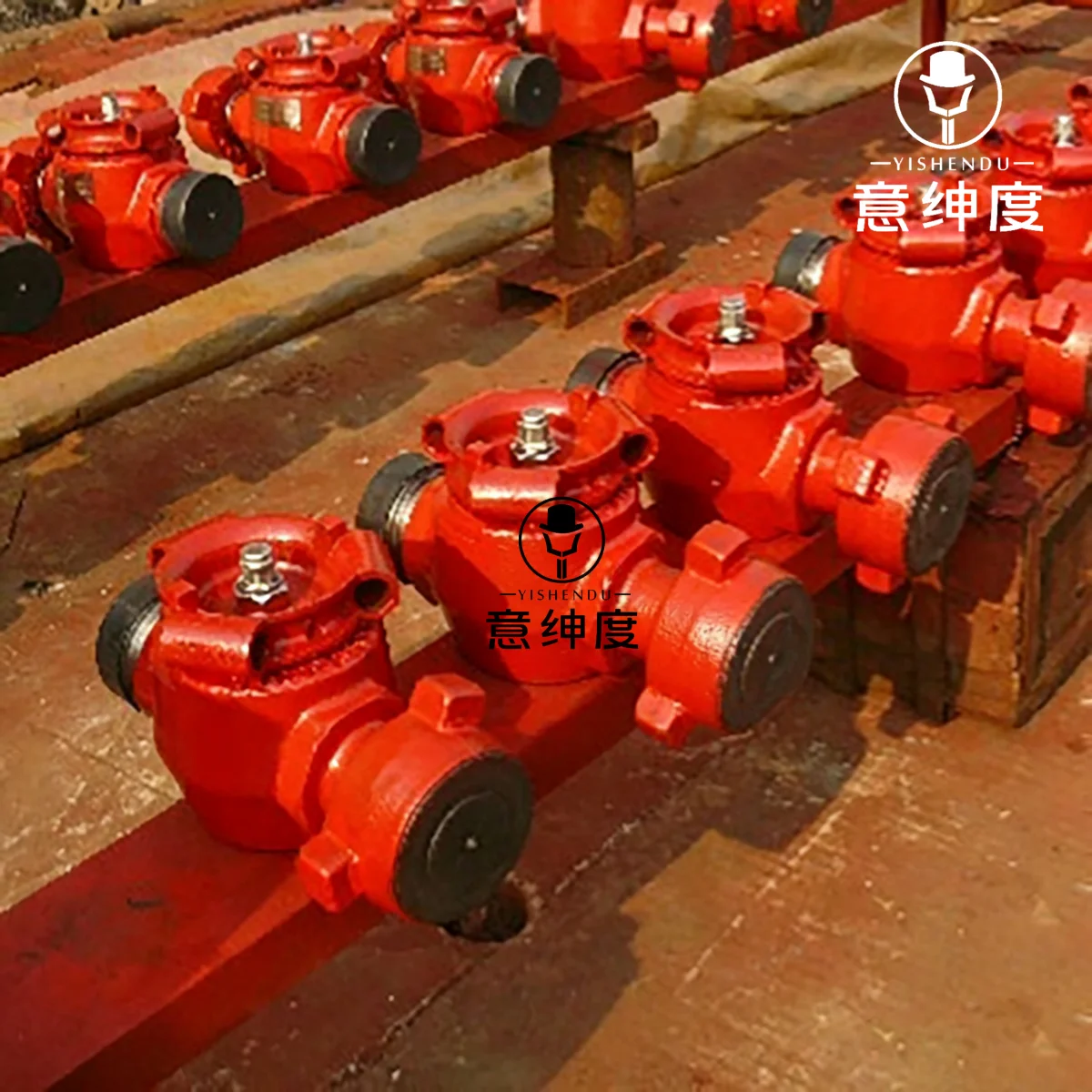

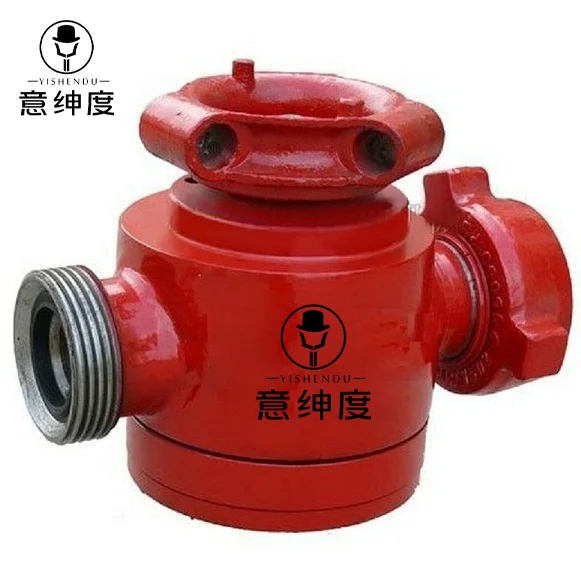

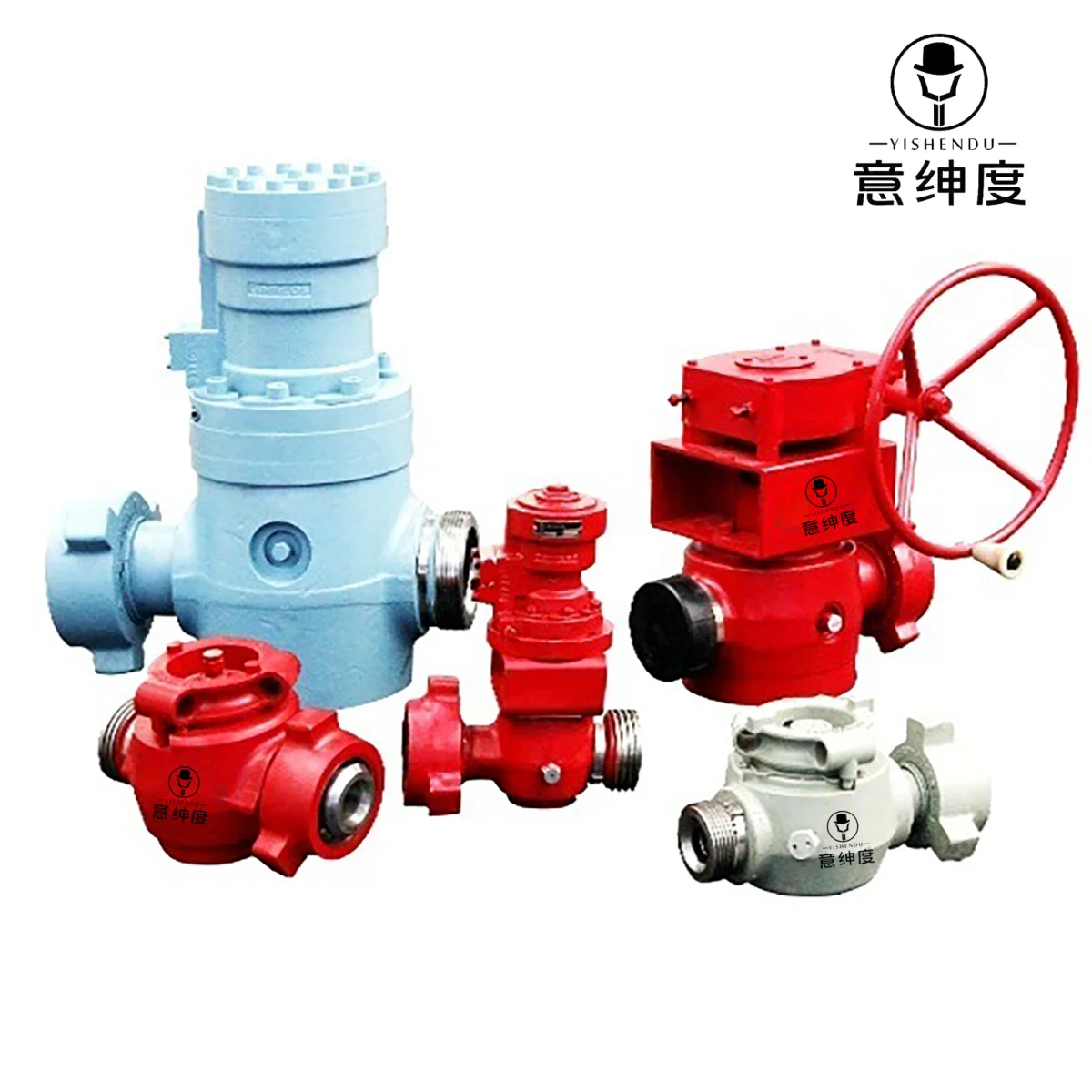

API 6A Plug Valve is an indispensable part to connect with high pressure manifold during well cementing and fracturing. It mainly consists of valve body, bonnet, plug, segments and hand wheel. This type valve features a compact structure, low torque, quick open & close and easy operation. Qihang's Plug Valves are manufactured strictly in compliance with API 6A and API Q1 standards and are available in rated working pressures up to 15,000 PSI. Plug Valves are mostly applied on various oilfield manifolds.
Detailed Specifications:
Nominal Bore: 1" - 4"
Pressure Rating: 5000 PSI to 15000 PSI
End Connection: Fig 1502 Hammer Union
Standards Applied: API Spec 6A, NACE MR0175
Material Class: DD, EE
Temp Class: L, P, R, S, T, U
Paint Color: Red or Customzed
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL4

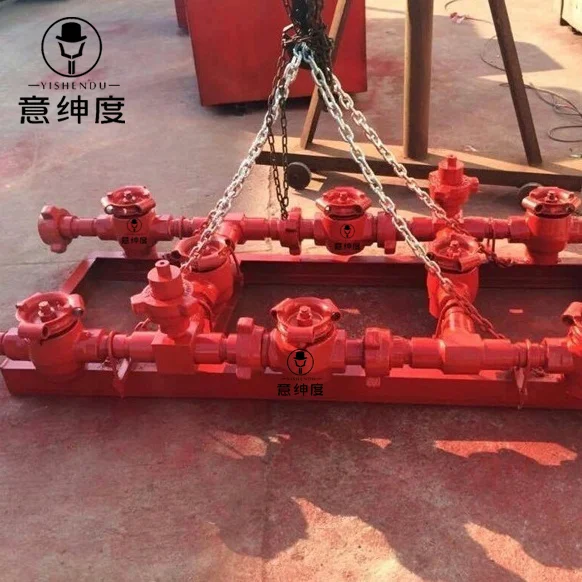

Application: Oilfield Manifolds
