Product Details

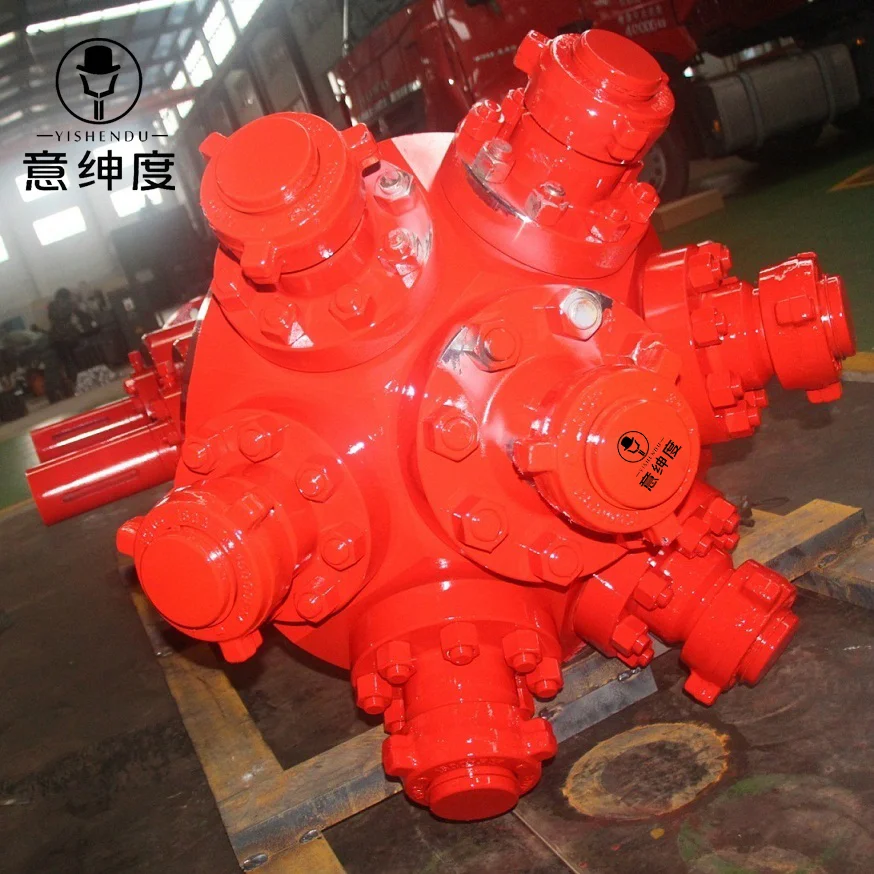

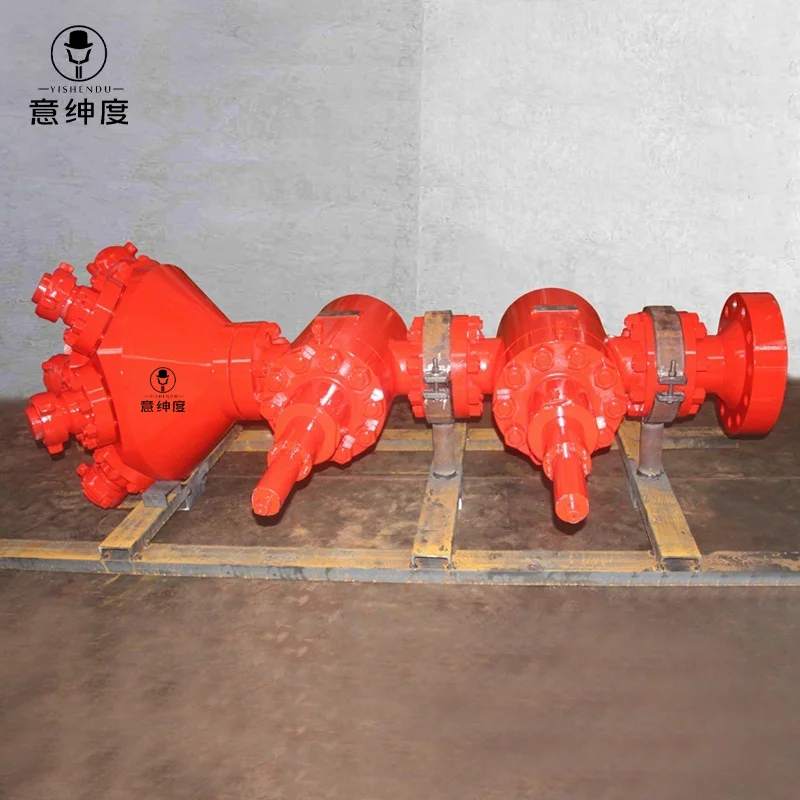

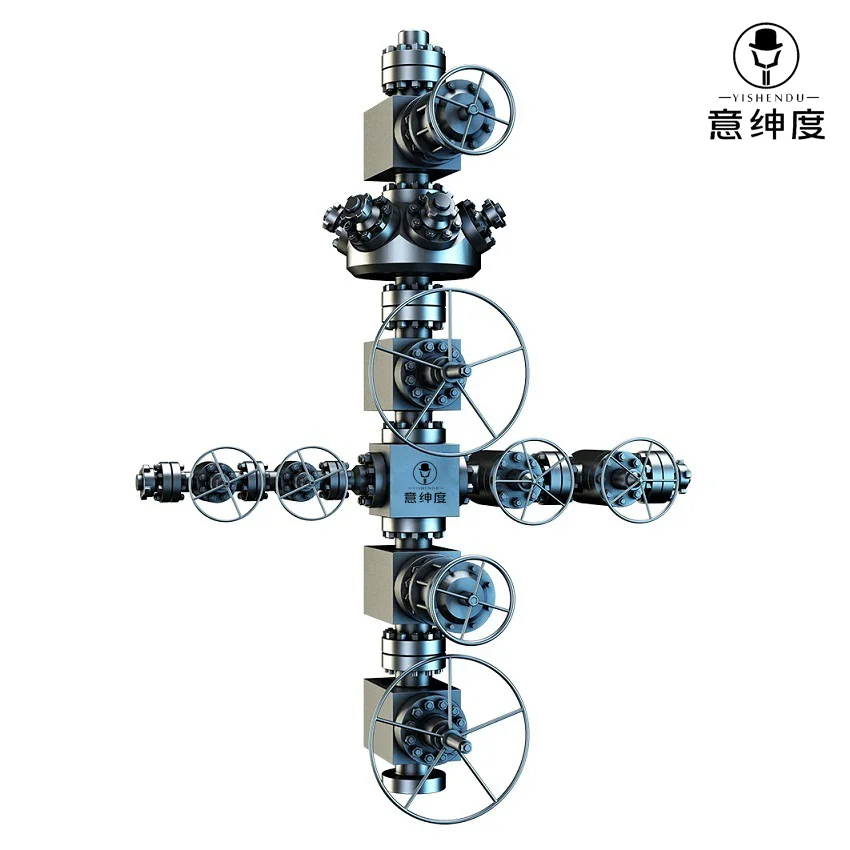

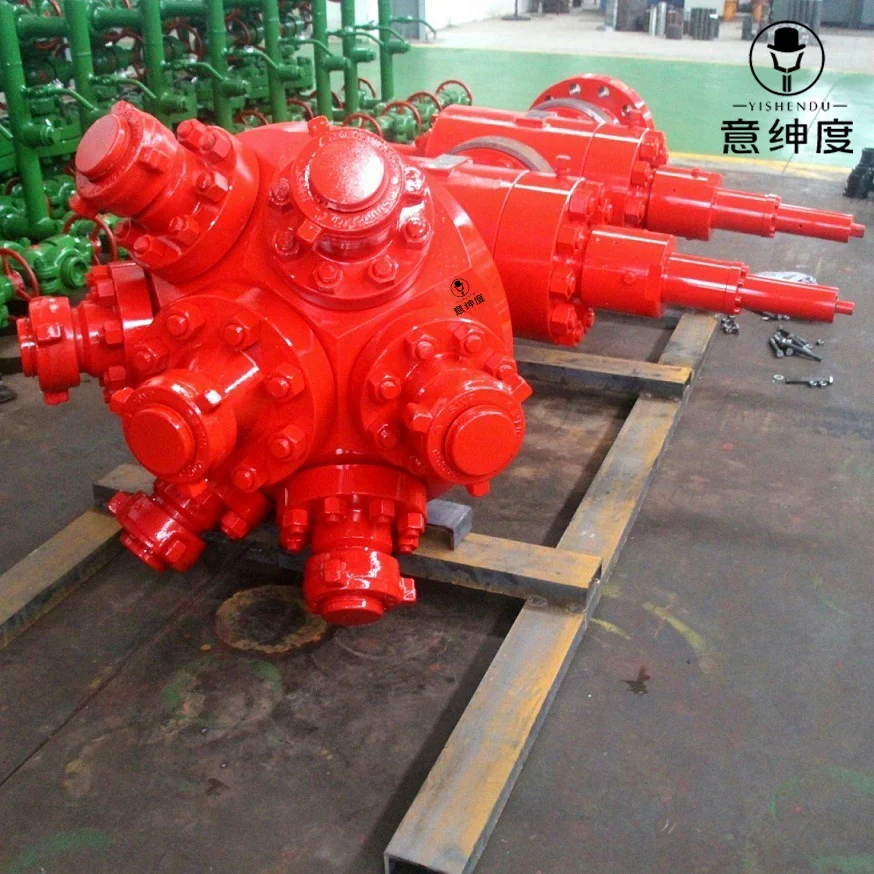

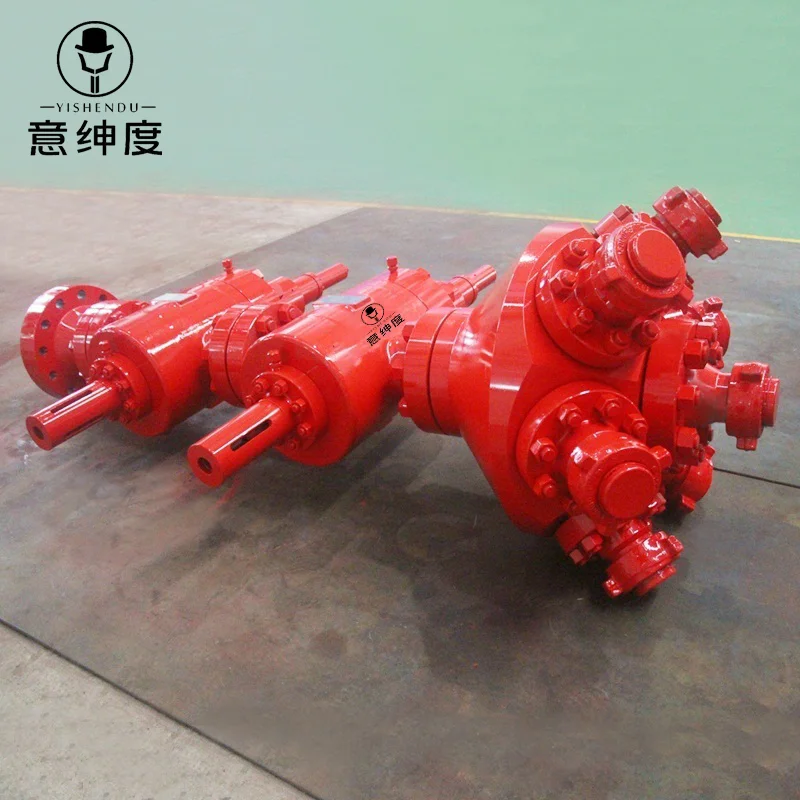

Frac Tree or Frac Stack, is a Christmas Tree installed specifically for the oilfield fracturing process. A frac tree typically consists of upper and lower master valves, flow cross, flowback valves, pump-down valves, swab valve, frac head/goat head, hammer unions, and tree cap. Frac trees generally have larger bores and higher pressure ratings than production trees to accommodate the high flow rates and pressures necessary for hydraulic fracturing. A frac stack in which multiple frac valves (manual type or hydraulic type) are contained in a single large body such that the overall height of the frac tree is reduced.
Frac Trees - Frac Stacks supplied by Qihang are strictly designed and manufatured in according with API 6A (20th edition) and NACE MR0175 standards for severe fracturing applications. The full-bore opening trees can easily handle harsh operating conditions, such as high pressure, high temperature, H2S and CO2 environments. The frac valve used on our frac tree is an upgrade of Cameron FLS-R gate valve, ensuring a long-lasting reliable and safe working performance.
Our frac trees are competitively priced without sacrificing the quality. We can also design and manufacture frac stacks as per customers' specific requirements.
Detailed Specifications:
Product Name: Frac Tree, Frac Stack, Fracturing Wellhead Xmas Tree
Bore Size: 1-13/16" - 7-1/16"
Primary Connections: 4 1/16", 5 1/8" , 7 1/16"
Wing Connections: 2 1/16", 3 1/16", 4 1/16"
Working Medium: Crude Oil, Natural Gas, Mud and Gas (H2S or CO2)
Frac Valve Type: Mannual or Hydraulic (2-1/16" – 7-1/16" 15000psi)
Standards: API Spec 6A, NACE MR0175, ISO 9001, ISO14001 etc
Working Pressure: 2000 - 15000PSI
Material Class: DD, EE, FF
Temp Class: K~X (-60℃~180℃)
Performance Requirement: PR1, PR2
Product Specification Level: PSL1 - PSL3G
Application: Well Fracturing, Oilfield Fracturing Operations, Fracturing Wellhead Assembly
Paint Color: Red, Blue or Customized
Origin: China
