Overview

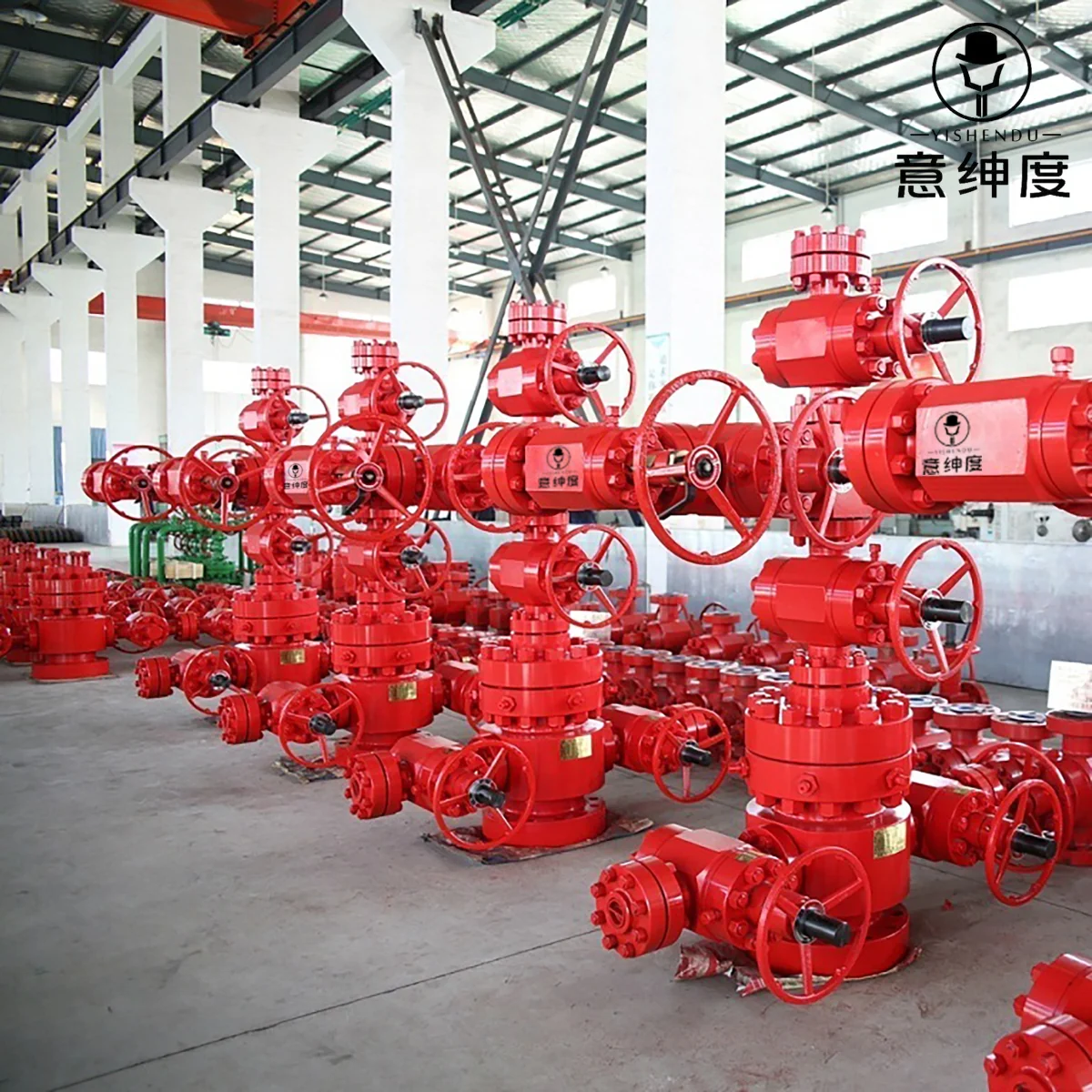

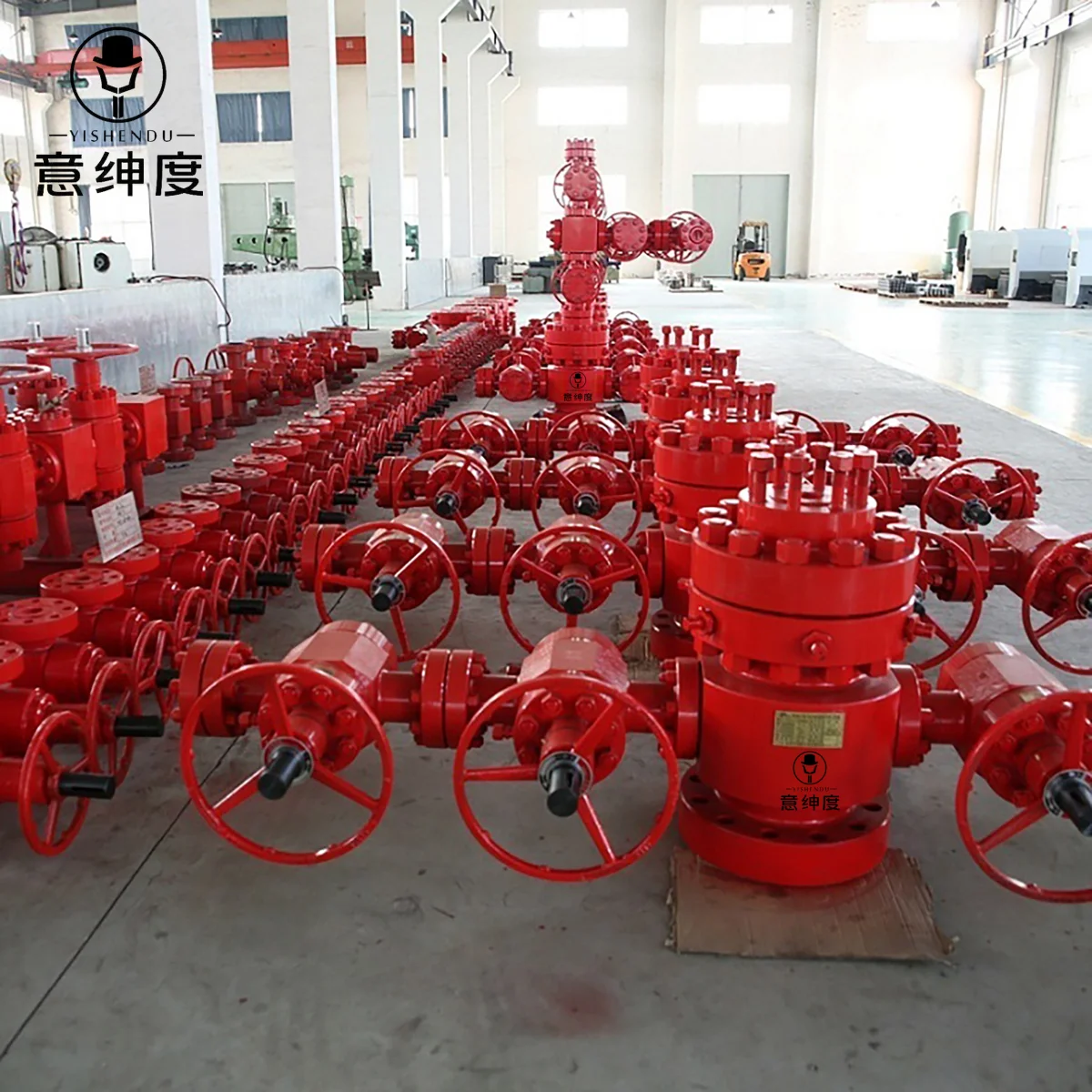

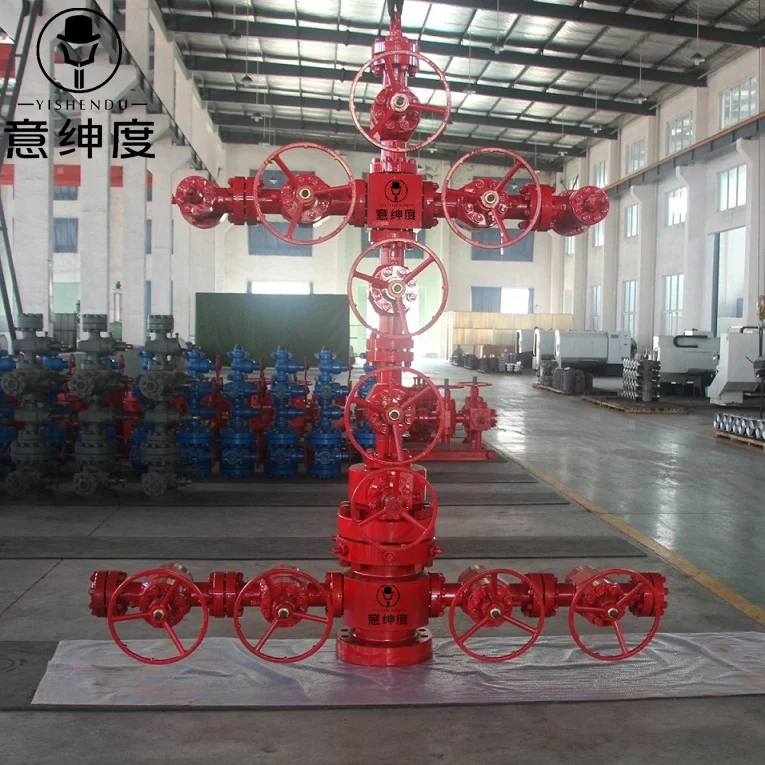

A Wellhead Assembly and Christmas Tree is the important component at the surface of an oil or gas well that provides the structural and pressure-containing interface for the drilling and production equipment. The primary purpose of a wellhead christmas tree is to provide the suspension point and pressure seals for the casing strings that run from the bottom of the hole sections to the surface pressure control equipment-Blowout Perventer (BOP). In petroleum and natural gas extraction, a Christmas Tree, or simply "tree", is an assembly of valves, spools, and fittings used for an oil well, gas well, water injection well, water disposal well, gas injection well, condensate well and other types of wells. Christmas Tree is actually a wellhead assembly and they often be used together.
All of Qihang's Wellhead Assemblies & Christmas Trees are fully designed, manufactured, and tested in accordance with API 6A standards. Both PR1 and PR2 ratings are available. The wellhead christmas tree produced by our company is widely used in various types of well structures and well completion. It is also suitable for acidizing, fracturing, water injection, steam injection, and well testing. Meanwhile, we can also design and manufacture wellheads according to special requirements of drilling and completion conditions on site.
Detailed Specifications:
Product Name: Wellhead Assembly and Xmas Tree
Nominal Bore Size: 2-1/16" - 4-1/16"
Main Components: Casing Head Assembly, Tubing Head Assmbly, FC Gate Valves, Adapter Flange, Cross, Choke Valve, Casing Hangers, Tubing Hangers, Pressure Gauges
Rated Working Pressure: 2000PSI - 20000PSI
Material Class: AA, BB, CC, DD, EE, FF
Material: AISI4130 (Integral Forged) or as per customers' equirements
Temperature Class: L, P, R, S, T, U, V
Performance Requirement: PR1, PR2
Specification Level: PSL-1, PSL-2, PSL-3, PSL-3G
Standard: API-6A, NACE MR0175
Traceability: Qihang's Wellhead Xmas Trees are supplied with full traceability documentation for each component.

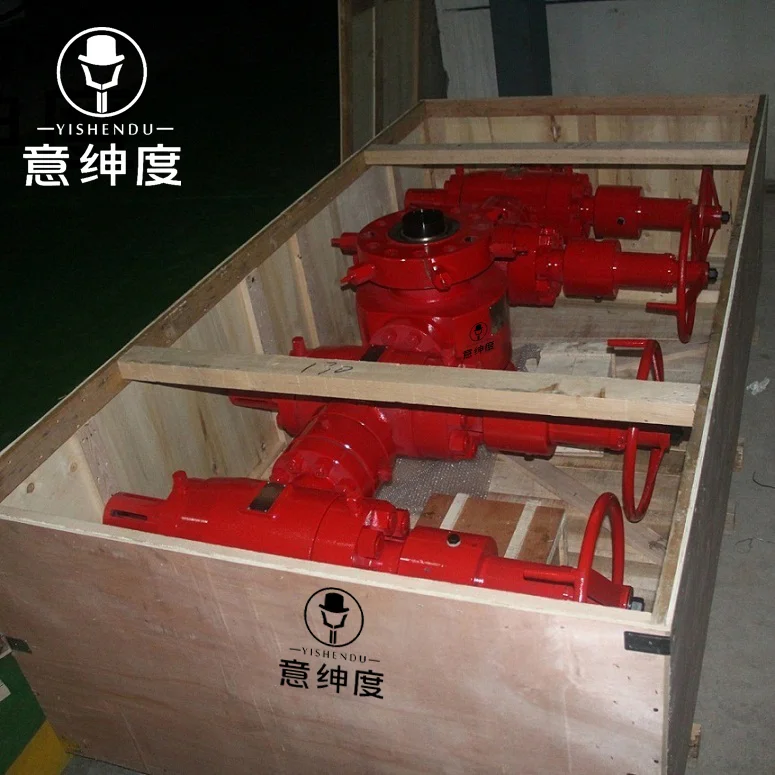

Packing: Fumigation-Free Plywood Cases
Origin: Yancheng, China

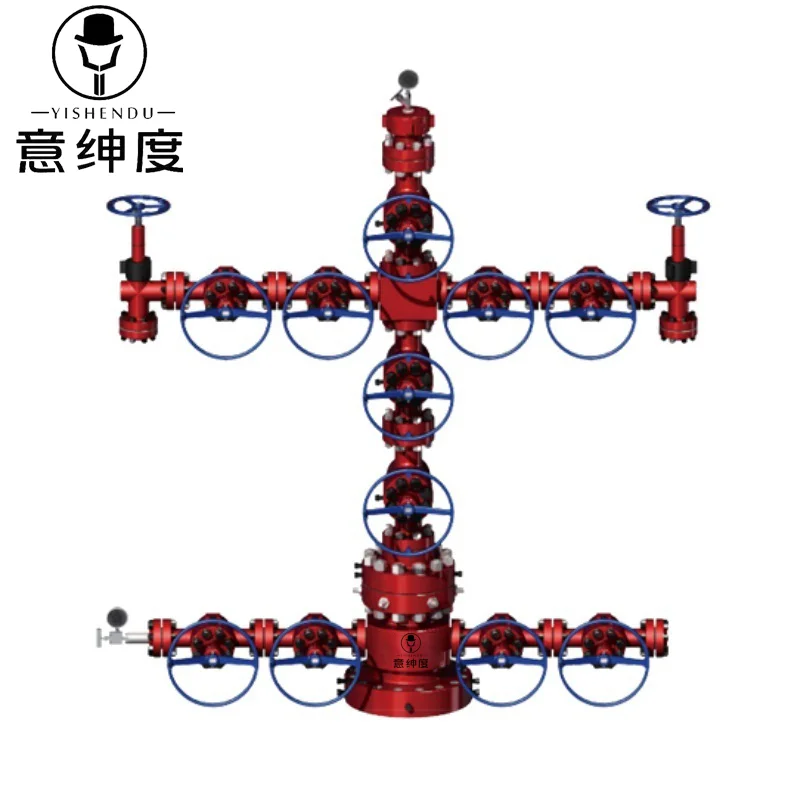

A typical wellhead assembly mainly consists of components as below,
Casing Head
Casing Spools
Casing Hangers
Adapter Flange
Cross
Gate Valves
Choke Valves
Test Plugs
Tubing Heads
Tubing Hangers
Tubing Head Adapter
Pressure Gauges
Features/Others
Petroleum(Gas) production tree can be both single or double wing structures.
In order to realize remote control, wellhead xmas tree can be completed with DSV, SSV, Pneumatic & Hydraulic control systems.
Choke valve type: adjustable or positive
On-Time delivery
Competitively priced
