Product Details

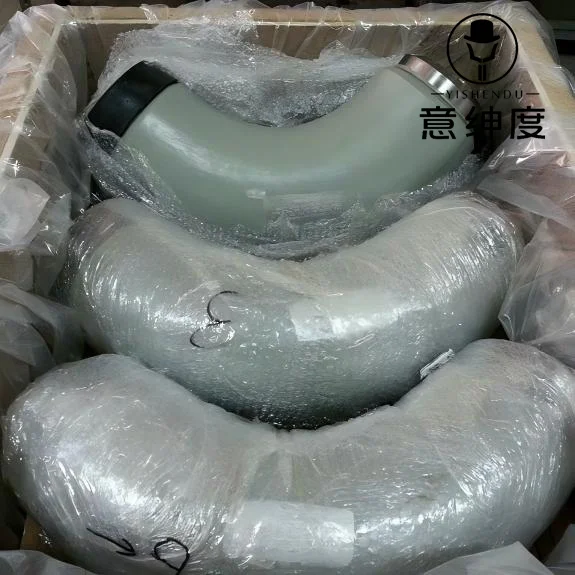

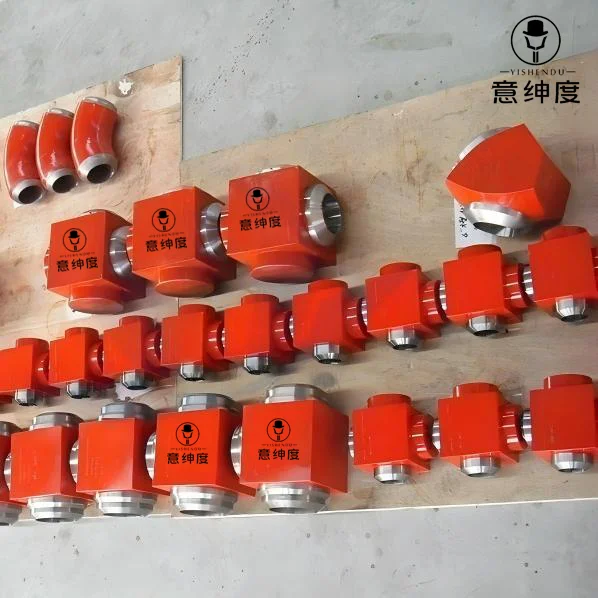

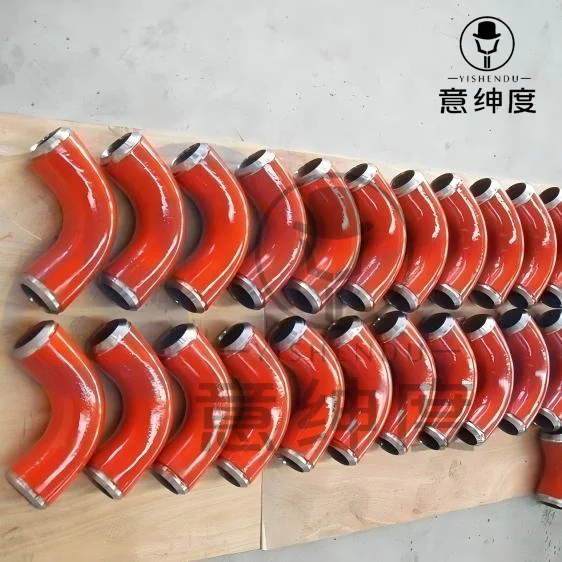

API High Pressure Fittings are very important components to connect high-pressure well service flowlines, fracturing flowlines, well testing flowlines, cementing and circulating flowlines etc. These Fittings come in many types and shapes, such as Elbow, Tee, Cross, Crossover, Concentric Reducer, Eccentric Reducer, Weldolet, Long Radius Elbow, Short Radius Elbow, Goosenect Straight Pipe, "Y" Long Radius Pipe, End Pipe Cap.
Qihang High Pressure Fittings are machined from high strength forged alloy steel or stainless steel which guarantees long life span. All of our High Pressure Fittings come with full material traceability and are available for both standard service and H2S service.
We a professional manufactuer of Wellhead Assembly, Christmas Tree, API-6A Valves, Blowout Preventer, Choke Manifold, Kill Manifolds and so forth. Apart from above mentioned high pressurel fittings, we also produce and suppy Hammer Union, Swivel Joint, Pup Joint, Chiksan Cementing and Circulating Hose Loops and many more.
Detailed Specifications:
Product Name: API High Pressure Pipe Fittings
Types: Elbow, Tee, Cross, Crossover, Concentric Reducer, Eccentric Reducer, Weldolet, Long Radius Elbow, Short Radius Elbow, Goosenect Straight Pipe, "Y" Long Radius Pipe, End Pipe Cap etc
Size: 1"-7"
Temperature Rating: LU, PU
Pressure Rating: 2000 PSI to 15000 PSI
Material: AISI4130 Alloy Steel(Integral Forged), Stainless Steel etc
Standards: API 6A, NACE MR0175, ISO 9001, ISO14001 etc
End Connection: Welding/Female/Male, Hammer Union, Flange, Thread
Shape: Equal or Reduce
Traceability: Qihang's integral fittings are supplied with full traceability documentation for each component.
Interchangeability: Qihang's High Pressure Fittings are interchangeable with major international brands.
Service: Standard Service, H2S Service etc
Application: High-Pressure well service flowlines, fracturing flowlines, well testing flowlines, cementing and circulating flowlines etc
Origin: China
