Product Details

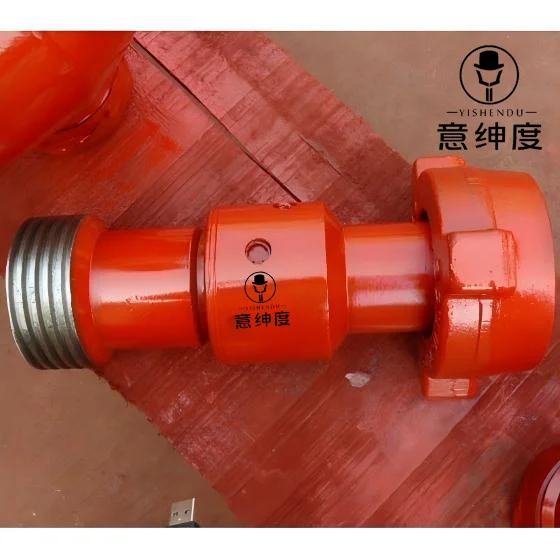

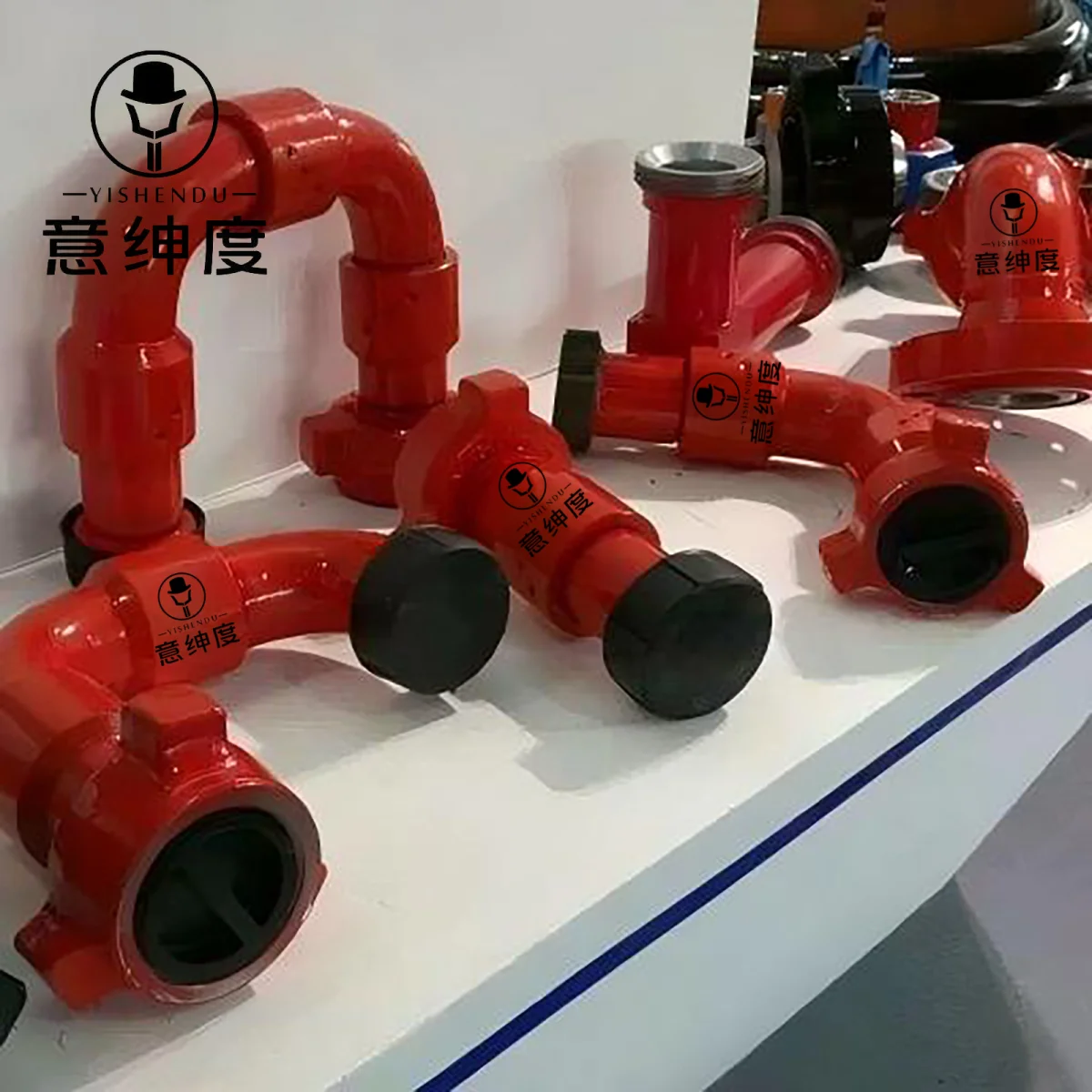

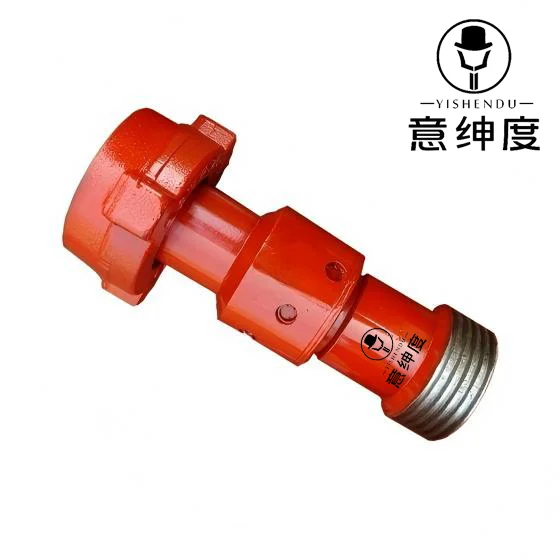

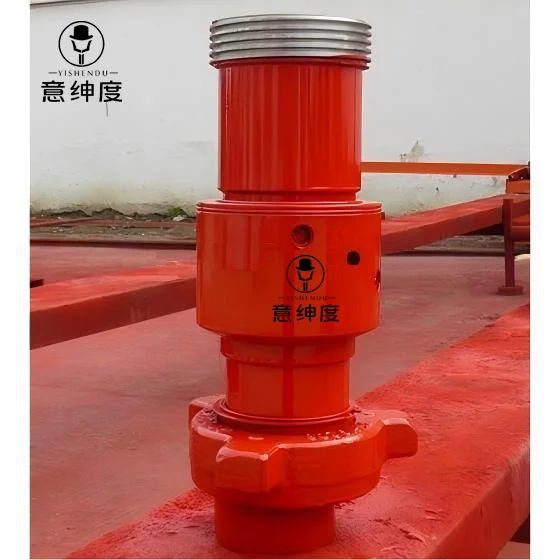

Product Name: High Pressure Chiksan Type Long Radius (Long Sweep) Swivel Joints
Sizes: 2", 3"
End Connections: Fig 602, Fig 1002, Fig 1502, Fig 2002 or Line Pipe Thread (LP)
Style: Style20.
Configurations: Male x Female (MxF)
Cold Working Pressure (CWP): 2000 PSI, 3000 PSI, 5000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
Material: AISI 4130 (Integral Forged)/ Stainless Steel
Temp Class: P-U (-29°C-121°C)
Working Condition/Service: Standard Service, Sour Gas Service (H2S) in accordance with NACE MR0175
Performance Requirement: PR1, PR2
Product Specification Level: PSL3
Standards Carried: API Spec 16C
Traceability: Qihang's Swivel Joints are supplied with full traceability documentation.
Applications: High-pressure well service flowlines, frac manifold, well testing internal connections, cementing and circulating flowlines, Manifolds and Pipelines etc
Origin: China
