Product Details
API Integral Fittings are cementing and fracturing equipment High Pressure Fluid Control Products which are widely used for connecting surface manifolds, such as fracturing manifold, cementing manifold, maintenance manifold, test manifold, high-pressure well service flowlines, fracturing flowlines, well testing flowlines, cementing and circulating flowlines.
Qihang Integral Fittings are machined from high strength alloy forged steel that is heat treated for long lasting performance. These fittings come with either integral connections or wing union end connections. They are available in many combinations (male by male, male by female, etc.) to suit virtually any installation. Many types are available including Tees, Crosses, Laterals, Wyes, Long Radius Swivels, Long Sweep Elbows, Ells, Adapters, Union Plugs. All of our Integral Fittings come with full material traceability and are suitable for both standard service and sour gas service.
Aside from above mentioned integral fittings, we also produce and suppy Hammer Union, Swivel Joint, Pup Joint, Chiksan Cementing and Circulating Hose Loops and many more.
Detailed Specifications:
Product Name: API Integral Pipe Fittings

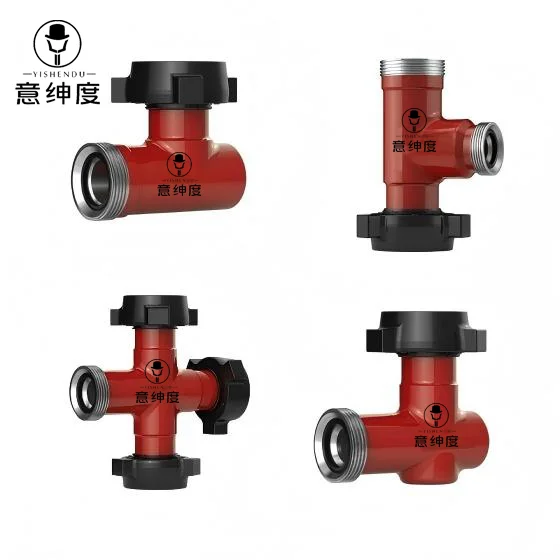

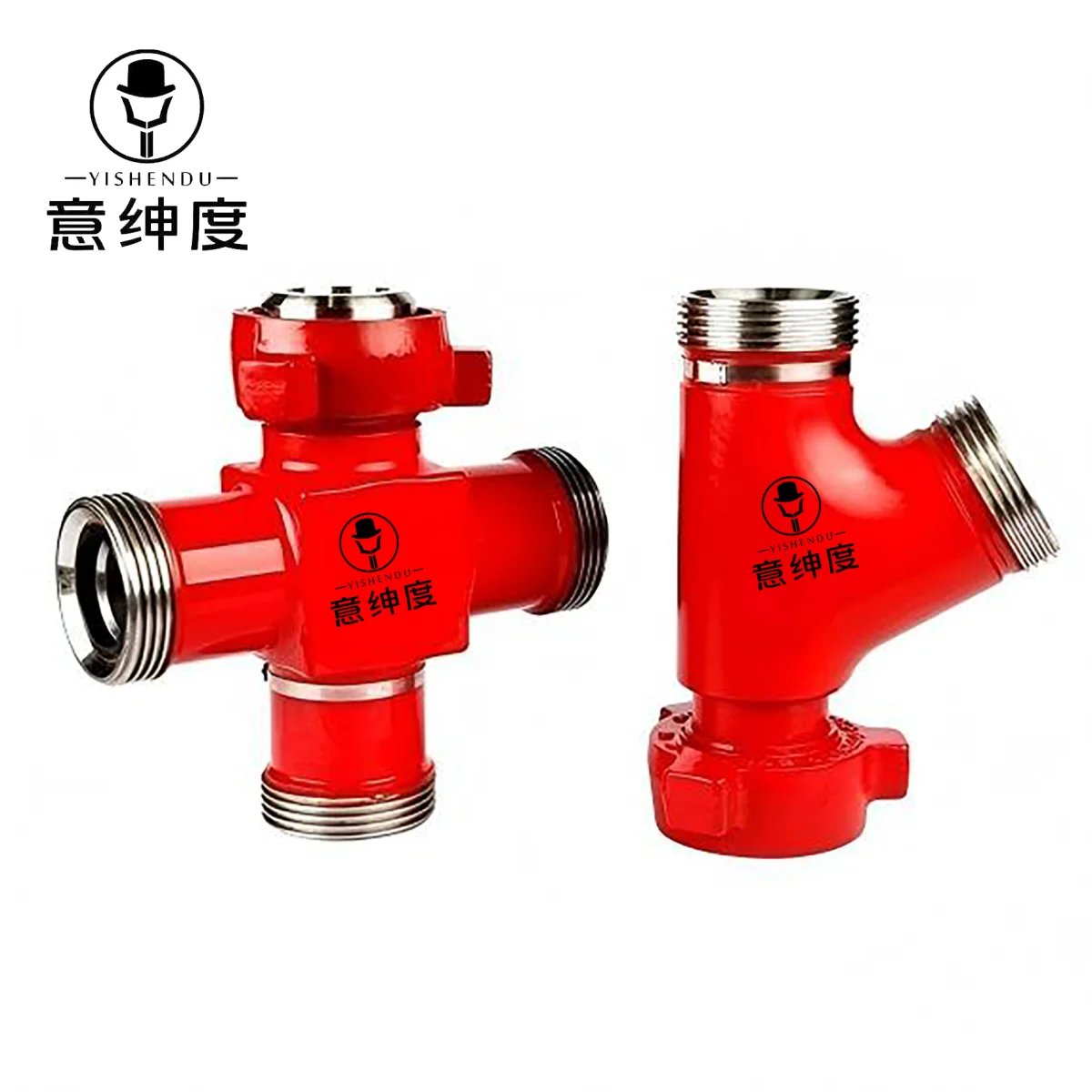

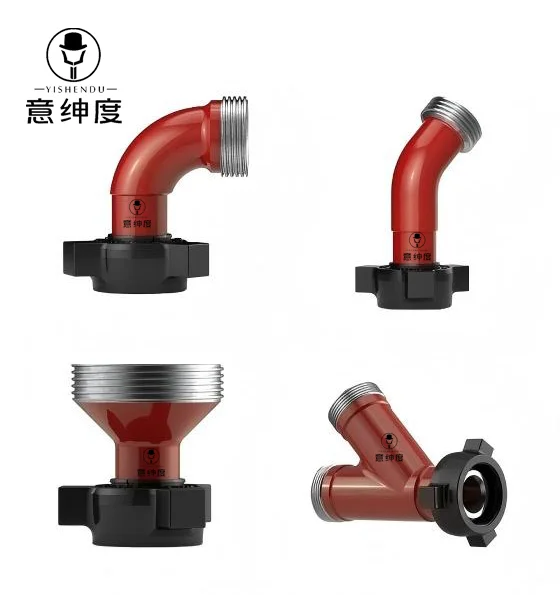

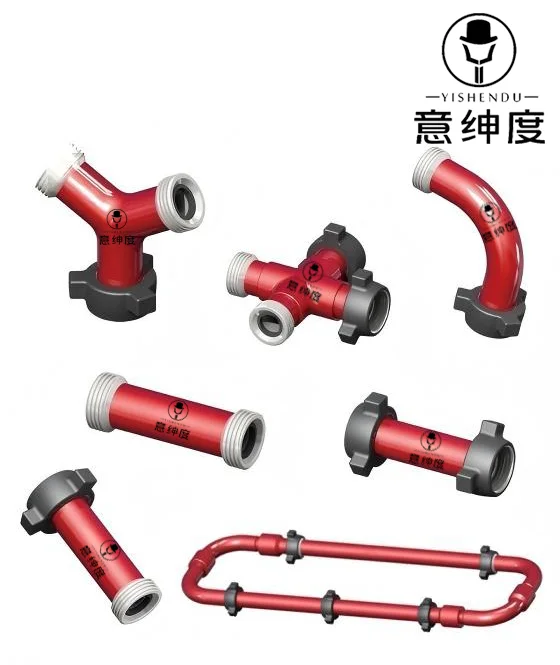

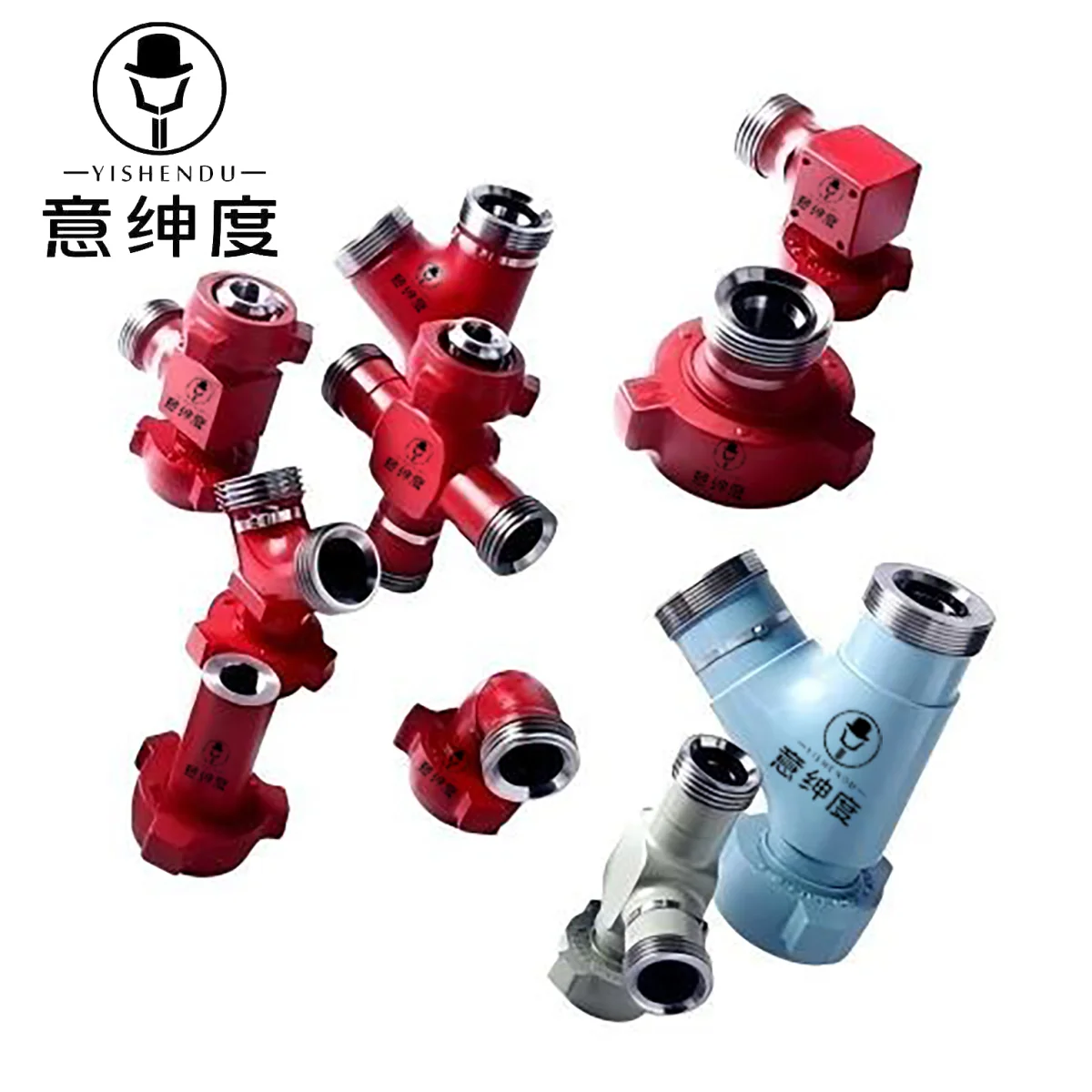

Types: Tees, Crosses, Crossover, Laterals, Wyes, Elbows, Long Sweep Elbows
Size: 1", 1-1/2", 2", 3", 4"
Temperature Rating: -29℃~121℃(PU), -46℃~121℃ (LU)
Pressure Rating: 6000 PSI to 15000 PSI
Material: Alloy Steel(Integral Forged)
Standards: API Spec 16C, API 6A, NACE MR0175, ISO 9001, ISO14001 etc
End Connection: Fig 602, Fig 1002, Fig 1502, Fig 2002, Flange, Thread
Traceability: Qihang's integral fittings are supplied with full traceability documentation for each component.
Interchangeability: Qihang's Integral Fittings are interchangeable with FMC integral fittings and SPM integral fittings and other major brands.
Performance Requirement: PR1, PR2
Product Specification Level: PSL3
Service: Standard Service, Sour Gas Service
Application: Fracturing manifold, cementing manifold, maintenance manifold, test manifold, high-pressure well service flowlines, fracturing flowlines, well testing flowlines, cementing and circulating flowlines etc
Origin: China
